JTV Pickup Wiring Diagrams

*NOTE: Any customization/modification performed will void the warranty if it results in damage to the guitar.

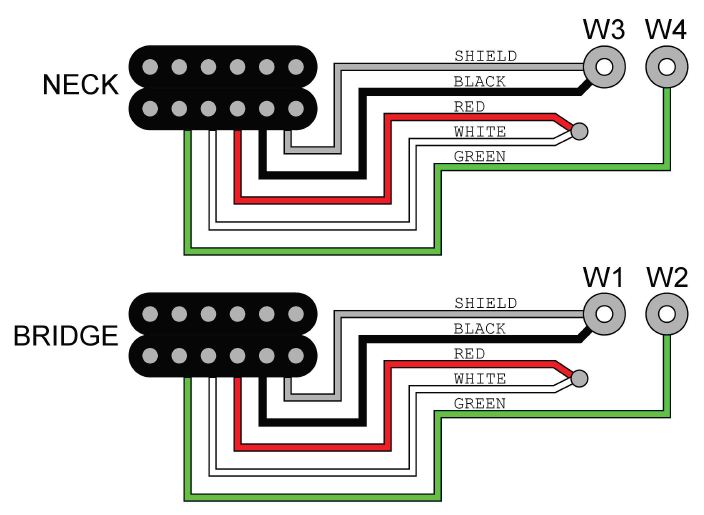

JTV-59

https://line6.com/media/ips/uploads/monthly_07_2013/ccs-229972-0-66601500-1374591281_thumb.jpg

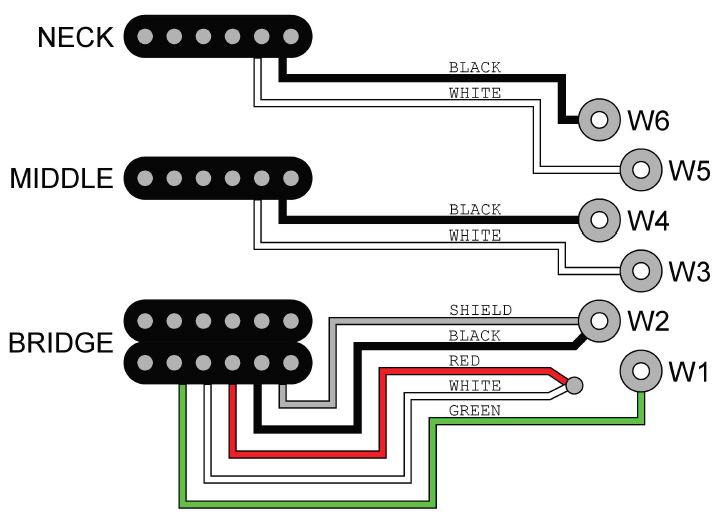

JTV-69

https://line6.com/media/ips/uploads/monthly_07_2013/ccs-229972-0-92411700-1374591286_thumb.jpg

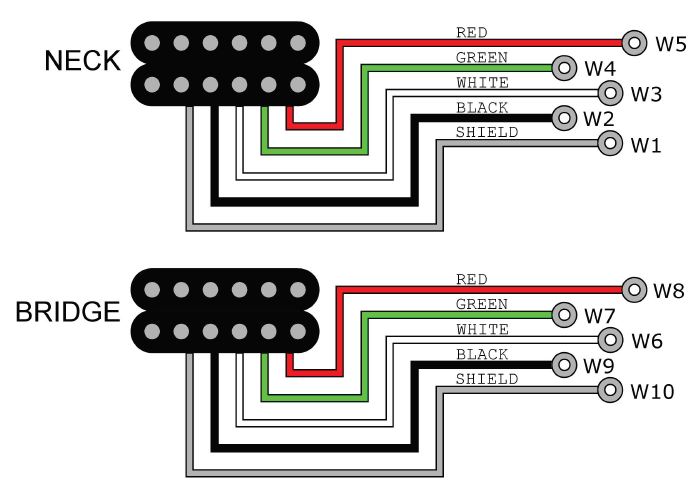

JTV-89

https://line6.com/media/ips/uploads/monthly_07_2013/ccs-229972-0-92958100-1374591290_thumb.jpg
